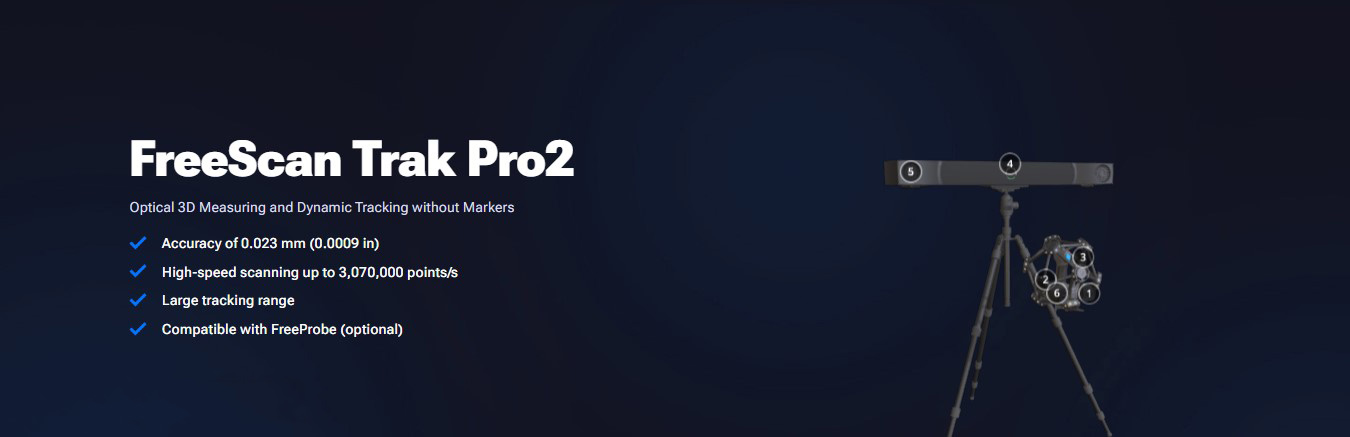

FreeScan Trak Pro2

Optical 3D Measuring and Dynamic Tracking without Markers

The ideal metrology tool for quality control and 3D inspection. With high accuracy and repeatability, the FreeScan Trak Pro2 enables fast, accurate inspection of various part types and surfaces without the need for markers.



Exceptional Accuracy

Exceptional Accuracy

FreeScan Trak Pro2 delivers metrology-grade scanning results with exceptional accuracy, reaching 0.023mm.

Capable for Scanning Wide and Narrow Area icon

Wide Measuring Range

FreeScan Trak Pro2's wide and expandable tracking range allows measurement of a broad spectrum of volumes and surfaces without compromising accuracy or requiring traditional leapfrogs in the scanning process.



No Markers Needed

No Markers Needed

The FreeTrak dynamically tracks the TE25 scanner using its tracking targets, eliminating the need to manually place markers on the scanned object.

3 Options of Laser Line Modes

3 Options of Laser Line Modes

The scanner features 50 crossed laser lines for quick and highly accurate scans, 7 parallel laser lines for partial HD scans with extremely fine details, and 1 single laser line for deep hole scanning with a hole diameter to depth ratio of 1:4.

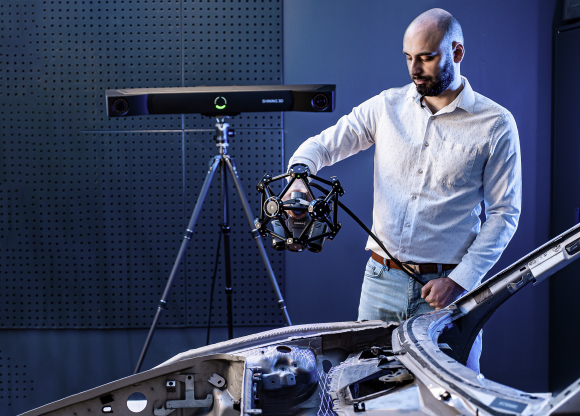

Dynamic Referencing, No Markers Needed



The FreeTrak dynamically tracks the TE25 scanner using its tracking markers, eliminating the need to manually place markers on the scanned object. This markerless operation saves time and makes the 3D scanning process much smoother.

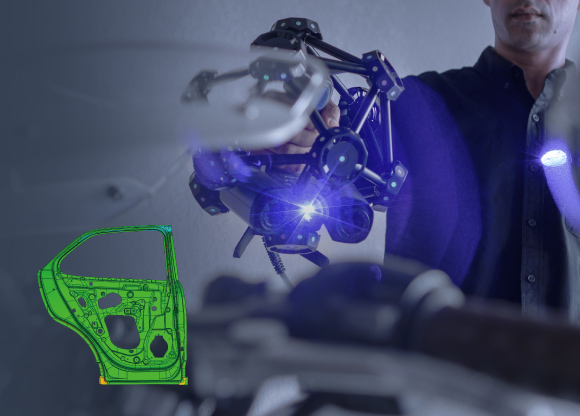

Exceptional Accuracy

The FreeScan Trak Pro2 delivers metrology-grade scanning results with exceptional accuracy, reaching 0.023 mm*.

*Based on VDI/VDE 2634, sphere-spacing error is assessed with traceable length artifacts and markers by measuring these at different locations and orientations within the working volume, in an accuracy lab certified with ISO/IEC 17025:2017, under environmental conditions of 20 ± 0.5°C temperature and 40-60% RH humidity.
