FreeScan Trak Series



Small in Form, Big on Performance.



From construction machinery to rail transit, civil aviation to energy, FreeScan Trak Nova is built to meet the diverse needs of industries requiring accurate and efficient large-scale measurements with extreme portability, productivity and versatility.

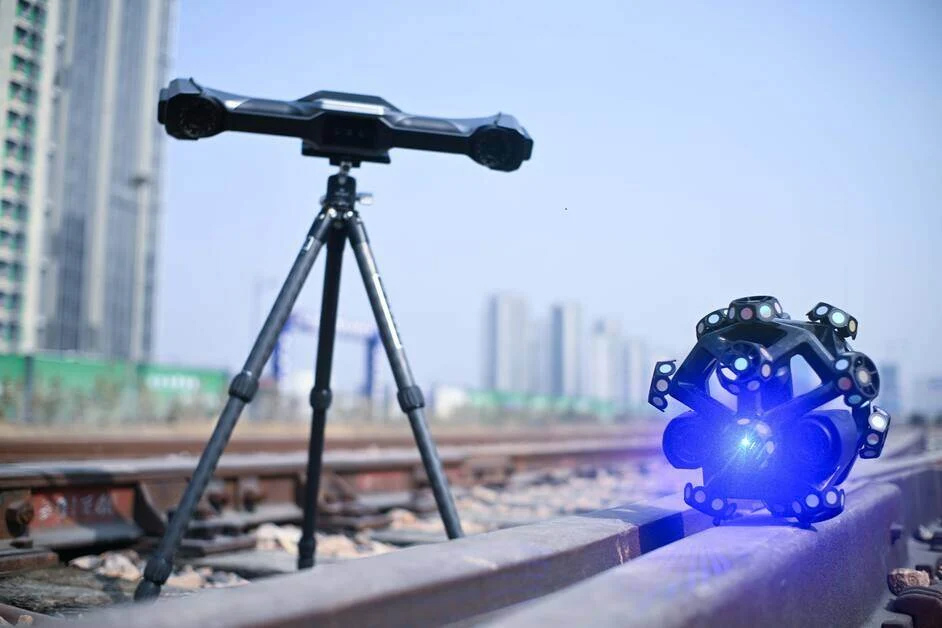

Dynamic Tracking Scan: Compact and Agile

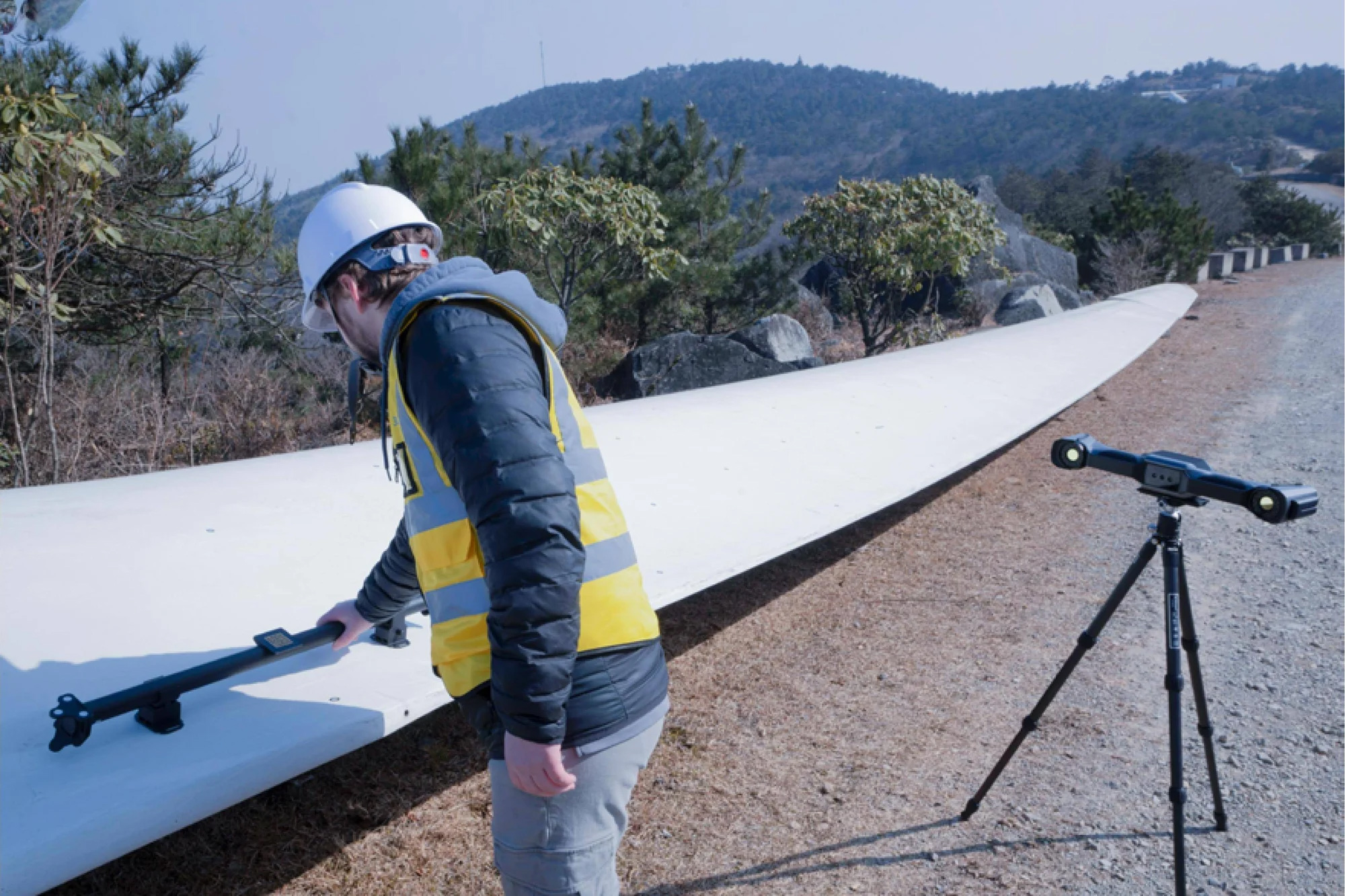

The real-time tracking technology allows for the capture of fine details. With its wireless and compact design, the system excels in scanning confined spaces, ensuring efficient and precise measurements.



Video Photogrammetry (VPG)



FreeScan Trak Nova system features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.

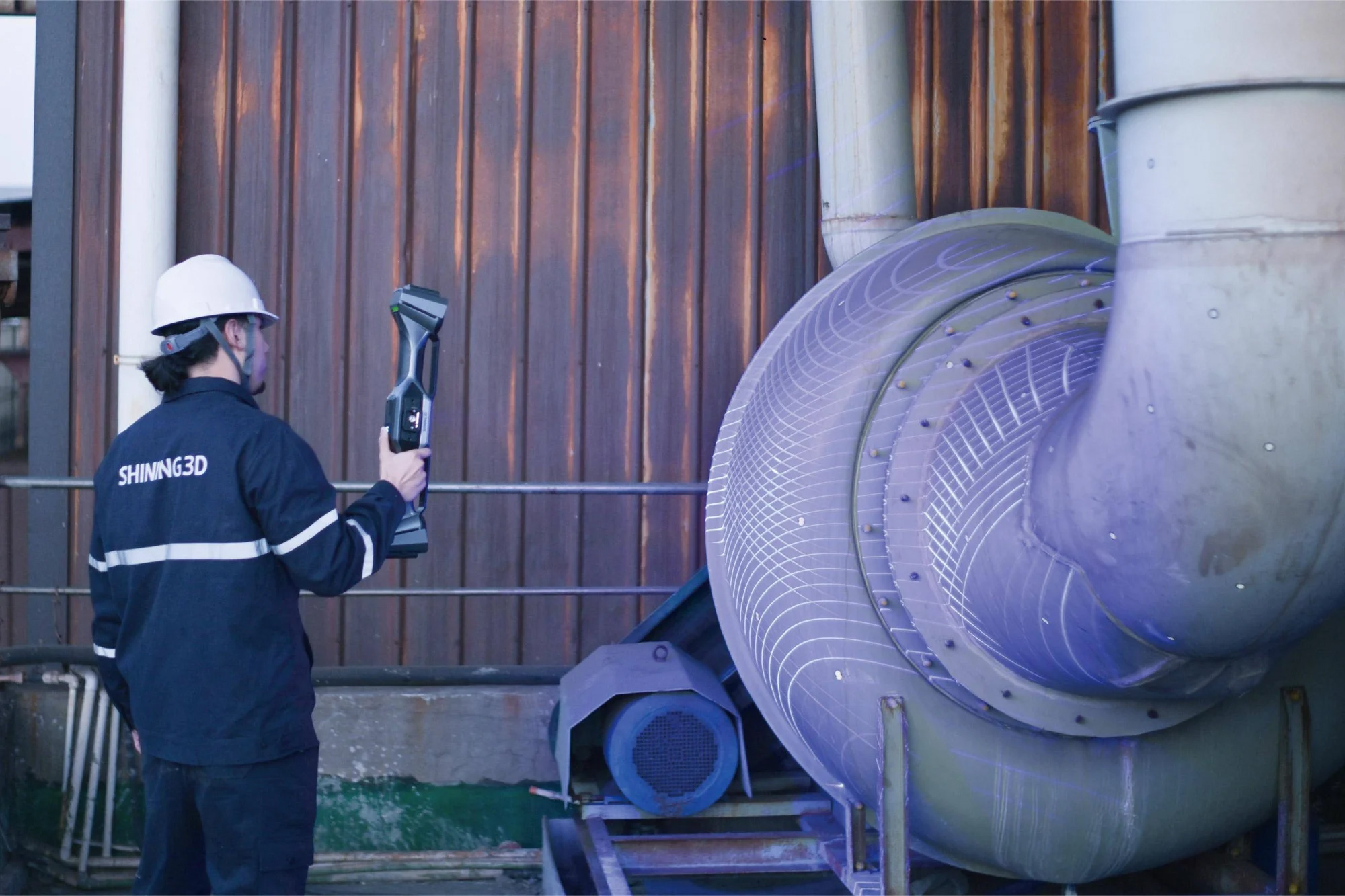

Free to Scan, Built to Perform

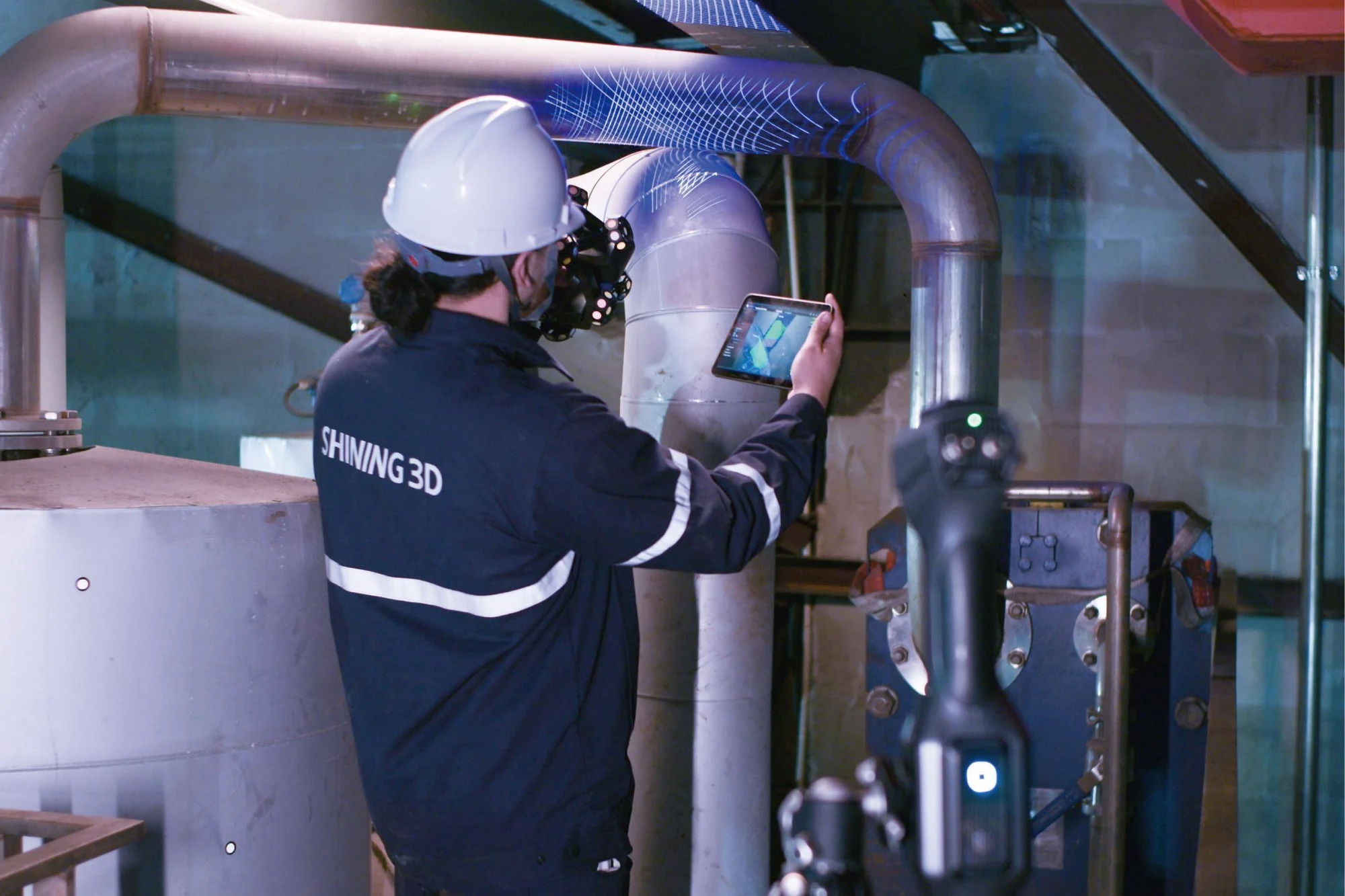

Integrated wireless modules: Achieve greater freedom when scanning large objects or in tight spaces, without the limitations of cables or external devices. This seamless integration allows for real-time transmission of scan data, ensuring high frame rates and stable data transfer.

Built-in computing modules: With advanced computing modules, both the tracking scanner and wide-range scanner ensure rapid and efficient processing.

What You Can Achieve with Our Scanners

Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.

  • Engineering Machinery & Other Transportation
  • Energy & Heavy Industry & Public Utilities
  • Automotive
  • Cultural Creation & Art Customization

FreeScan Trak Software

Advanced Software for Seamless 3D Measurement

1.       Multi-Scan Modes Data Fusion

The system seamlessly combines wide-range laser scanning for overall structure capture with dynamic tracking for detailed local features, integrating broad coverage and fine details into a unified dataset.

2.       Intelligent Resolution

Automatically adjusts mesh resolution based on the object's curvature, ensuring clearer and more detailed features.

3.       AI Feature Recognition

Intelligent boundary detection enables fast, accurate scanning and measurement of round and square holes, delivering high-accuracy hole data.

4.       Inspection Module

Integrated inspection module, certified by PTB, for reliable, high-quality full-size inspection.



  • High-speed scanIncluded (50 laser lines)
  • Detailed scanIncluded (7 parallel laser lines)
  • Deep pockets scanIncluded (1 laser line)
  • VPGIncluded (no coded markers required)
  • Accuracy0.02 mm
  • Volumetric accuracy0.062 mm (12 m³)
  • Volumetric extension accuracy with VPG0.046 + 0.012 mm/m
  • Scan Speed6,140,000 points/s
  • Resoluton0.01 ~ 10 mm
  • Flexible FOVUp to 2600 x 2200 mm
  • ConnectionWireless & Wired mode (Fiber optic)
  • Depth of fieldTE Nova 380 mm (170 ~ 550 mm); UE Nova 2700 mm (800 ~ 3500 mm)
  • Net weightTE Nova 1.2 kg; UE Nova 1.6 kg
  • CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
  • Acceptance testVDl/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab)
