FreeScan Trak ProW

Track Smarter, Expand Further



FreeScan Trak ProW features an extended tracking range and an impressive expanded scanning volume, making it an ideal solution for large-scale 3D measuring tasks. With wireless operation, power bank supported, it offers unparalleled freedom and flexibility.



Ultra-Wide Measuring Range

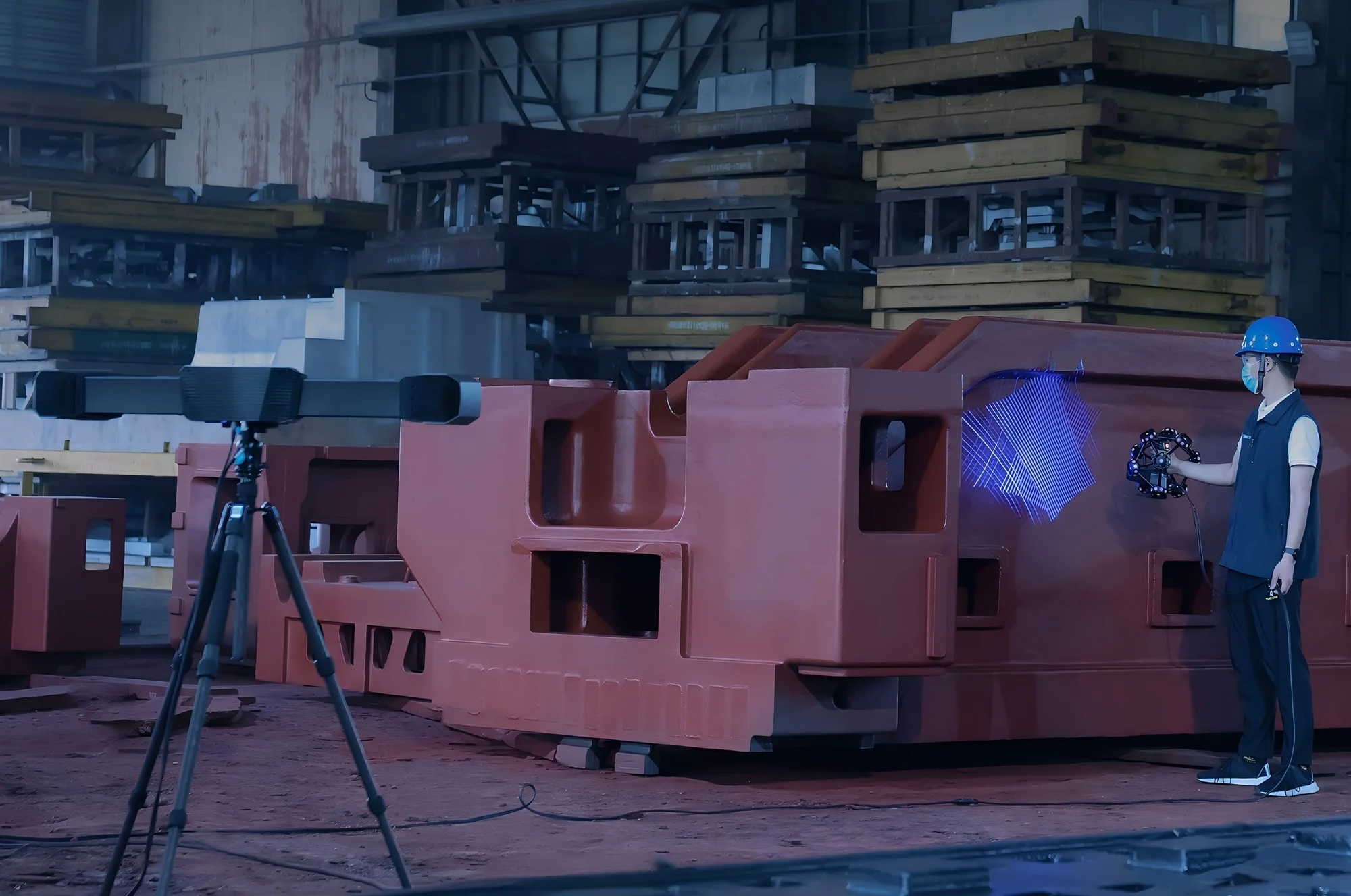

FreeScan Trak ProW features a groundbreaking design with an ultra-long 8.6 m tracking distance and widely expands the single-station tracking volume to 206.7 m³, significantly reducing the need for leapfrog* during large-scale object scanning.



Wireless Scanning Wherever You Go

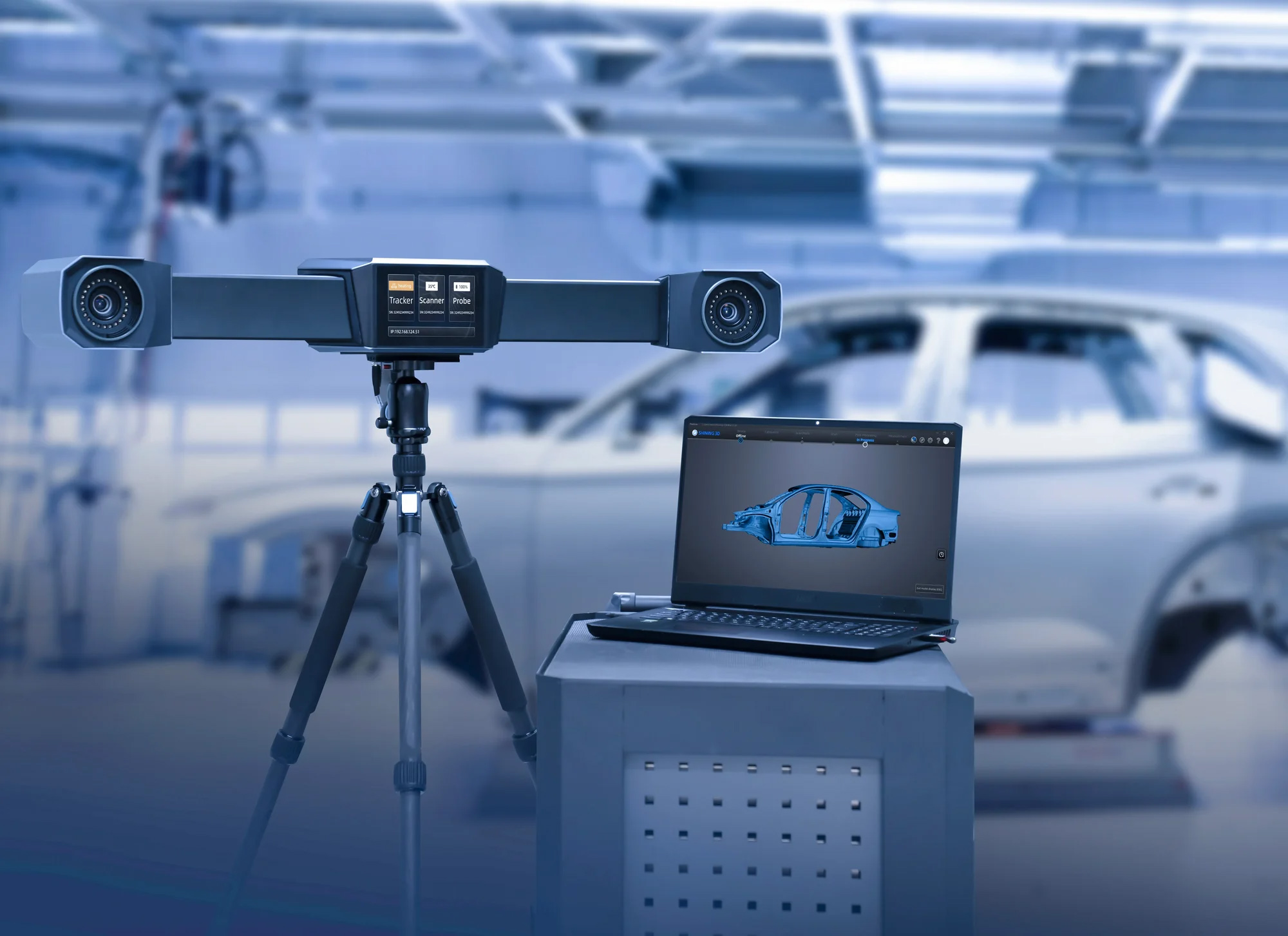

FreeScan Trak ProW delivers fast, wireless scanning anywhere. Its cable-free design enables real-time data transfer, with power bank support for unrestricted mobility. An integrated screen ensures seamless operation.

  • Built-In Computing Modules
  • Integrated Wireless Modules
  • Flexible Power Supply
  • Real-Time Display Screen



No Markers Needed,
Fast Paced Scanning

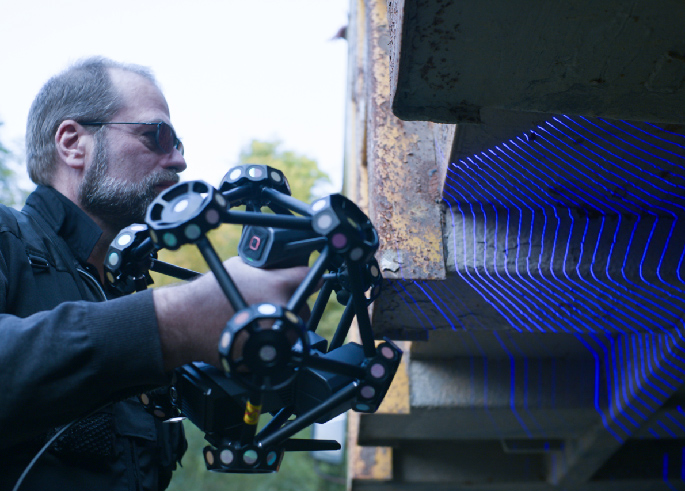

FreeTrak W enables real-time TE25W scanner recognition and positioning, eliminating the need for reference markers, which enhances scanning efficiency and streamlines the workflow, while ensuring rapid data acquisition with a scanning speed of up to 5,500,000 points per second.



Video Photogrammetry (VPG)

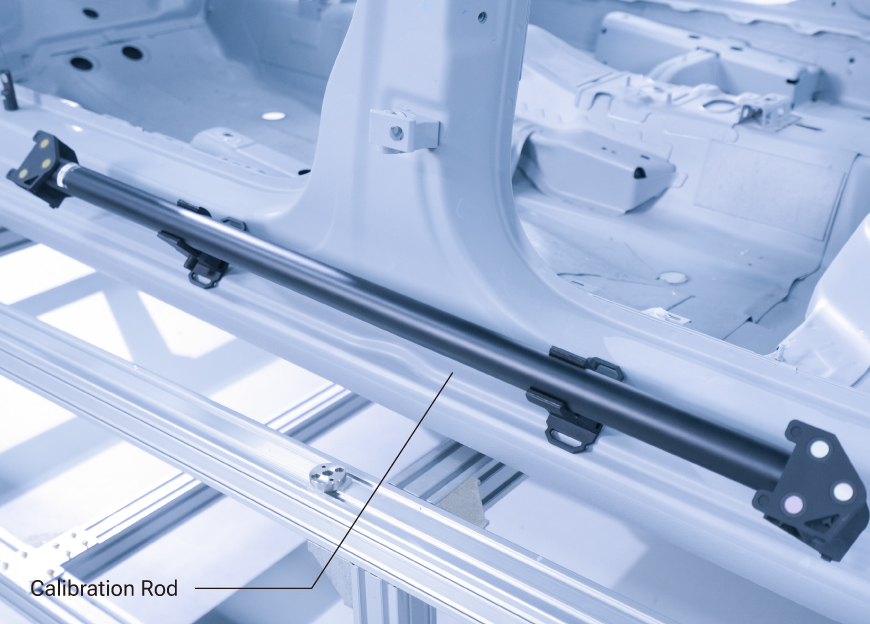

FreeScan Trak ProW features SHINING 3D’s patented video-based photogrammetry, which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.





Our Support Coverage

At SHINING 3D, we don’t just provide devices – we deliver customized solutions, global support, and a commitment to your success. From intuitive tools to calibrated accuracy, we’re here to empower your work.



What You Can Achieve with Our Scanners

Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.

  • Engineering Machinery & Other Transportation
  • Energy & Heavy Industry & Public Utilities
  • Automotive

FreeScan Trak Software



1.       Real-Time Data Quality Visualization

Users can access the quality of scanned markers during video photogrammetry and check data completeness during scanning.



2.       Intelligent Resolution

Automatically adjusts mesh resolution based on the object's curvature, ensuring clearer and more detailed features.



3.       AI Feature Recognition

Intelligent boundary detection enables fast, accurate scanning and measurement of round and square holes, delivering high-accuracy hole data.



4.       Inspection Module

Integrated an inspection module, certified by PTB, for reliable, high-quality full-size inspection.





Compatible Software

Geomagic Control X                                                                                                           Polyworks



Geomagic Design X                                                                                                            BlueStar Mapping



Technical Data

  • Accuracy0.023 mm
  • Resolution0.01 ~ 10 mm
  • Volumetric accuracy (based on measuring range)15.6 m³: 0.046 mm; 45 m³: 0.063 mm; 76 m³: 0.088 mm; 128 m³: 0.127 mm
  • Volumetric accuracy with VPG0.044 + 0.012 mm/m (extension volume)
  • Scan Speed5,500,000 points/s
  • High-speed scanIncluded (50 laser lines)
  • Detailed scanIncluded (7 parallel laser lines)
  • Deep pockets scanIncluded (1 laser line)
  • WeightFreeTrak W: 8.2 kg; TE25W: 1.47 kg
  • ConnectionWireless & Wired mode (fiber optic)
  • CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50,
    TELEC, TiSAX
  • Acceptance testVDl/VDE 2634 Part3 (certificated in
    ISO 17025 certificated accuracy lab)
